Industrial Multi Needle High Speed Sewing Quilting Machine 3 Needle
Bar

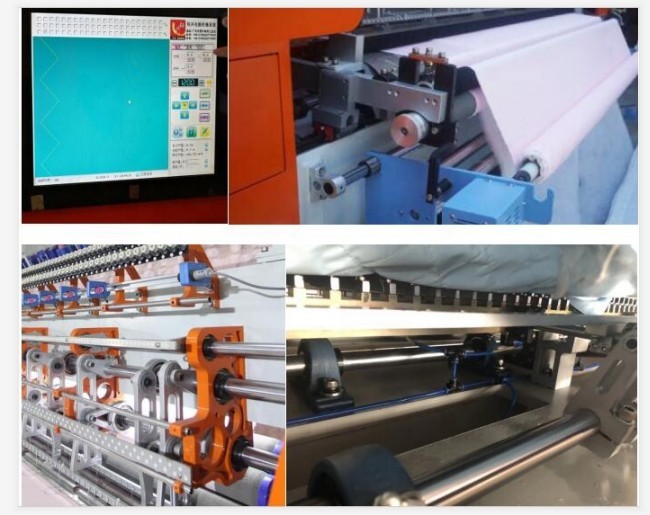

Multi needle high speed quilting machine strength
Angle of fuselage for easy shuttle change
Machine beamand fuselage are reinforced. Ensure machine running
stably with higher speed
Big power servo motor, faster Machine speed, up to 1400r/min
Encoder program, machine information transmission more accurate
Automatic oil lubrication system to extend machine life-span.
Upgraded computer system, to bring a convenient user experience and
easy to upgrade computer software any time.
Function:
- 360 random quilting, limitless multi-span and tack, jump function
- Convenient pattern editing function.
- Embroidery designs is compatible.
- Ringing notice and infared system.
- Auto lift needle and orientation brake system
- Adjust speed and stitch by computer system.
- Automatic refueling system·
- Thread break dectation and auto stop system.
Application: bed cover, bed sheet, quilt, blanket, comforter, bedspread, pillow
case; jackets, pajamas, night gown; cushions, seat covers, gloves,
bags.
Specification:
| Product Name | Computer Shuttle(Lock Stitch) Multi-needle Quilting Machine |
| Model | YXS-96-3DS |
| Size(L*W*H) | 4730*1750*1700MM |
| Weight | 6800kg |
| Quilting width | 2.45m |
| Quilting thickness | ≤50mm |
| Main shaft speed | 500-1400r/min |
| Yield | 10-280m/hour |
| Suitable needle size | #14, #16, #19 |
| X-axis stroke | 20.4cm |
| Distance between needles | 1 inch |
| Distance between needle bars | 3E 7.62cm (3"+3" ) |
| Stitch length | 2-8mm |
| Rated Voltage(AC) 3 phase | 380V/50HZ; 220V/60HZ; |
| Power required | 7.5KW |
Support and service
1. Client can send material to test in our machine, and check the
work effect.
2. accept inspection and loading supervision before delivery.
3. offer the good after sale service with fastest reaction.
4. Video call and online support to help solve client's machine
problems.
5. Help to draw new patterns for clients, as long as client offer
the design picture and size. The service is free.
