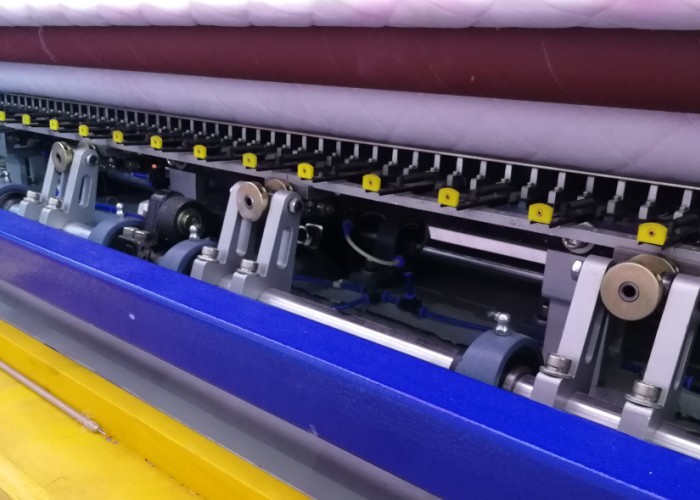

128 Inch 1200RPM Multineedle Professional Quilting Machine With
Automatic Refueling
Upgrade place based on C series lock stitch quilting machine.
- Exterior: Fuselage and beam and foot are reinforced, which help machine
works more stably with high speed.
- Parts: core bearings adopt imported bearings, conveyor belts to replace
triangle belt, encoders replace optocoupler.
- Motors: adopt Japan famous brand big power servo motor.
- Software: use new upgraded software. Available program language: Chinese,
English, Portuguese, Turkish, Russian.
- Function: speed higher, compatible to embroidery designs, automatic oil
refueling.
Application
high quality garments, quilts,blanket, quilt covers, pajamas,
handbags, pillow case, car seat cover, etc.
Parameter
| Model No. | YXS-128-3D |
| Dimension(L*W*H):cm | 559*175*170 |
| Gross Weight | 6.6 tons |
| Quilting width | 320cm |
| Needle bar space | 152.4(3"+3") |
| Thickness of quilting | ≤5cm |
| Work speed | maximum 1200r/min |
| Speed of production | 10-240m/hour |
| Model of Needle | Groz needle #14, #16,#19 |
| X-axis movement | 25.4cm |
| Needle space | 2.54cm |
| Stitch length | 2mm-8mm |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Total Power | 7500KW |
Warranty
Warranty: 1 year since the ship arriving at the destination port.
1) During warranty, the machine parts(except wearing parts, like
needle, shuttle,shuttle bar, etc) can be replaced for free.
2) Under warranty, if computer broken, it can be replaced for free, but first need to send computer back for checking.
3) We provide additional consumable parts with machine delivery.
Pls refer to packing list.
4) Offer life-time after service. Any time if machine has problem,
client can contact us with photos and small video to describe malfunction. We will help to
solve problem by online guide. If problem very serious, we can send technician to client's factory
for repairing as request. Client needs to
bear visa cost, round trip flight tickets, accommodation, and labor
cost USD100/day.
