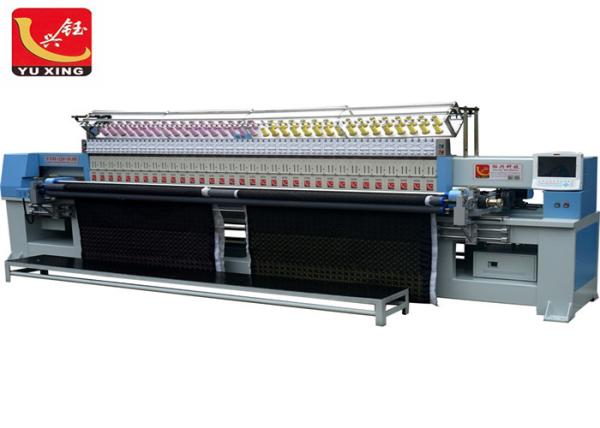

25 Head Computerized Quilting Embroidery Machine 128 Inch For
Garments
Features:
1. The machine is mainly quilting for garments like jacket,
quilts,blanket, bedspread, handbags, pillow case, car mat, etc.
2. The machine has 25 heads with 50 needles, each needle controlled
by one switch.
3. The machine adopts pressure die-casting machine head,it’s more
stable and durable.
4. Processed width: 3.35m, highest rolling speed: 1000rpm, needle
type: #16
5. Machine auto stop when thread is broken, with inverted fabric
device.
6. The program can compatible with other brand embroidery patterns
(only need to copy in the program with movable U disk)
7. Low noise.
Products specification
| Machine Type | Model | Head Quantity | Needle Space | Needle Quantity of Head | Embroidery Area | Size |
| Max. Processing Area | Length | Width | Height |
| Single needle control | YXH-128-67.5B | 25 | 67.5 | 1 | 3454 | 5400 | 1400 | 2000 |
Parameter:
| Product Name | Computer Quilting and Embroidery Machine |
| Model | YXH-128-67.5B |
| Size(L*W*H) | 5400*1400*2000mm |
| Weight | 3000kg |
| Quilting width | 3400mm |
| Needle space | 67.5 |
| X-axis movement | 260 |
| Head quantity | 25 pieces |
| Rotating shuttle | Big rotating shuttle |
| Quilting thickness | 20-600g |
| Stitch | Binary system:0.15-12.7mm |
| Needle storage capacity | 120,000 |
| Pattern storage capacity | 960 |
| Needle type | #14,#16 |
| Principal drive | Servo motor drive |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Power | 5KW |
Functions:
1. Quilting and embroidery is completed together.
2. Y axis is driven by roller system.
3. Keep fabric smooth by tension motor when fabric feed-in and
feed-out.
4. X,Y,Z direction adopt the servo control system,to ensure the
accuracy of embroidery.
5. Auto-stop device.
6. Auto-return for patch-up embroidery function.
7. Automatic lubrication system.
8. Easy head selection for quilting function.
9. Continuously quilting independent patterns function,jumping
quilting function.
10. Tajima, Barudan, ZSK and SWF formats can be read.
11. The unique mechanical structure can reduce the
vibration,thereby its better to control the vibration and reduce
noise.
Applications:
garments like jacket, quilts,blanket, bedspread, handbags, pillow
case, car mat, etc.

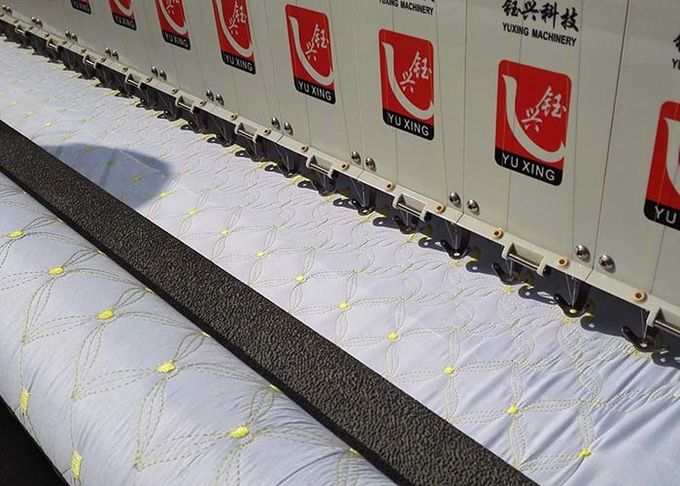

Pattern show
