Computer Multi Needle Quilting Machine For Quilt Production Line 94 Inch Width
This multi needle quilting machine and cutting machine, if
connecting with cotton opening machine and carding machine, it will
be a full quilt production line. From cotton to wadding to quilting
and cutting. It will save much labor cost and time. Besides it can
also be used for bedspread, pillow case, cushion production.
Multi needle quilting machine specification:
| Model name | YXS-96-3D #10 |
| Dimension(L×W×H) (mm) | 4730*1750*1700 |
| Needle bar quantity | 3 |
| Quilting width (mm) | 2450mm |
| Needle row distance (mm) | 152.4 |
| Needle distance (mm) | 25.4 |
| X-axis movement (mm) | 254 |
| Max. thickness of quilting (mm) | 50 |
| Stitch size (mm) | 2~8 |
| Yield (M/H) | 10~240 |
| Type of needle | #14,16#,19# |
| Speed of main shaft(RPM) | 500~1200 |
| Total power required | 6.5KW |
| Voltage | 380V/50HZ; 220V/60HZ |
| Gross weight | 5.8 tons |

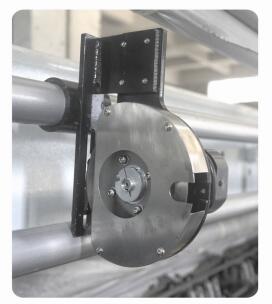

Edge cutting device
It is to cut the edge of quilted material, standard assessory is 3
blades. Each blade has one motor.
 | Model | Cutter series |
| Power | 1kw |
| Voltage | 380v/50hz |
Cross cutting machine
It is to cut the quilted material at the horizontal direction.
Model | Thickness | Cross cutting width | Cutting speed | Power | Voltage | Size(MM) | Weight |
| CS-94A | 50MM | 50MM-2500MM | 5M/MIN | 0.65KW | 380V 50HZ | 3250*2000*1800 | 500KG |
Wadding feeding machine
It is to feed in the rolled wadding into machine smoothly.
 |
Model | Weight | Width of wadding | Speed | Power | Voltage | Size(mm) |
YXR-2500 | 300KG | 2600MM | 10M/MIN | 0.2KW | 380V/50HZ | 2870*1070*710 |
Function of quilting machine
1. Fuselage and beam and foot are reinforced, which help machine works more stably with high speed..
2. Needle bar running with needle bar frame,no need to add extra
lube, avoid the materials be soiled by lube.
3. Firm and durable needle bar frame structure , so that to reduce
the cost of maintenance.
4. X and Y axis are driven by servo equipment. Principal axis uses
the frequency conversion device
5. The automatic oil refueling function can make the machine maintenance easier and prolongs the
machine lfetime.
6. Adjust speed from 500rpm - 1200rpm by computer, the stitch can be set between 2mm-8mm.
7. New computer system, compatible to embroidery designs. 360°random quilting and limitless multi-span and tack and jump
quilting.
8. Compensation function,an effective solution for looping pattern
with thick material.
9. Advanced and practical testing upper thread broken
techniques,the machine is auto-stop when thread is broken.
10. When hand block the infrared system , machine will auto stop,
which makes your operation safer.
11. Pattern editing is easy to learn and computer can connect with
usb.
12. Ringing notice when start machine, to keep worker operation
safety.
Pattern show
