Bedding 96 Inches Multi Needle Quilting Machine Lock Stitch Industrial

Ask Lasest Price
Brand Name :	Yuxing
Model Number :	YXS-96-3CS#10
Certification :	CE
Price :	Negotiable
Supply Ability :	20 set/ month
Delivery Time :	15 workdays

Add to Cart

Product Details
Company Profile

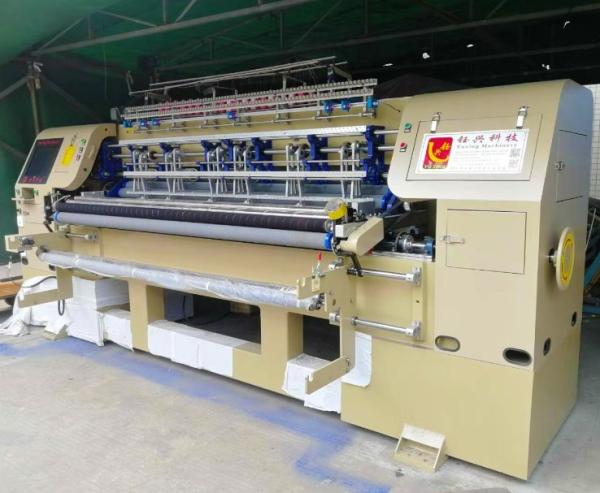

Bedding 96 Inches Multi Needle Quilting Machine Lock Stitch Industrial

1. The speed of needle is controlled by the computer and can reach 1000rpm/min.
2. Needle row movement adopts aluminum alloy needle bar frame structure which doesn’t need to refuel, and will be strong and durable.
3. The saddle frame and roller adopt servo drive equipment, and the spindle adopts frequency conversion control;
4. Adopt high precision and high rigidity imported screw rod;
5. 360°arbitrary quilting and unlimited independent pattern step quilting;
6. Automatic stop function when the upper thread is broken;
7. Infrared induction makes the operation safer;

Technical Parameter:

Parameter(Unit mm)	Model: YXS-96-3CS#10
Dimension (LWH)	460015001700 MM
Quilting width	2450mm
Space between needle rows	76.2,76.2, 152.4(6")
Space between needle	25.4
X-ais movement displacement	254mm
Thickness of quilting	≤50mm for all patterns
Stitch Length	2-8mm
Speed of operation	60-210m/hour
Model of Needle	24/180 23/160 22/140 21/130
Speed of operation	200-1000RPM
Total Power required	6.8KW
Voltage	380/ 50HZ,220V/60HZ or other customer requirement
Gross Weight	4850KG
